DENVELOPS texTILES S.L.

Our system

When customization becomes a pleasure

For the first time, a metal mesh textile inspired system can be organized in random modulations. In addition, the production system based on digital skills ensures that this new type of sophistication can be faithfully reproduced in a very competitive way.



Denvelops can be used to create unlimited free patterned designs.

The system is composed of a short list of components

Smart components

Simple help to create complex systems

Denvelops system is designed with three customisable components; Lines, Connectors and -optional- Pieces, created with the following objectives:

  • Customizable components to create efficient and ecological projects.
  • Maximum freedom to create projects.
  • Work with massive and economical industrialized small components.
  • Produced off-site: easy and simple (to install, maintain and recover).

With this basis, Denvelops is ready to assume all big new objectives that projects designers are demanding today.

A) Denvelops® System Name Parts

The system is composed of a short list of components

1. Lines

Vertical plates where the Connectors can be attached.

2. Connectors
Horizontal wires that “Connects” the Lines between them.

3. Pieces
Tiles or bricks attached to the system.

B) Types of Pieces, Connectors & Lines

Pieces, Connectors and Lines are the one that makes the finished of the system:



  • For a metal fabric image project, there will be only with Lines and a lot of Connectors.
  • For a ventilated facade or sunscreen project, there will be Pieces attached to the Lines or Connectors.

PIECES

Shape: Modifing the shape of the connectors all type of tiles or brick can be used in the system.



Material: Stainless, Aluminium, Steel, HPL, polycarbonate, composite, etc.



Dimensions: Normally every piece (up to 350 x 350 mm) is attached to one connector. But big pieces can be also attached to the system with more than one connectors.

LINES

Shape: Free. It can be straight or curved, in many turns or curved forms.



Material: Stainless, Aluminium, Steel, HPL, polycarbonate, composite, etc. up to 50.3 mm.



Dimensions: Normally with rectangualr section from 30.3 mm up to 50.3 mm.



Hinged connections: In order to make larger Lines or in order to insert graft apendices to the system.

CONNECTORS

Shape: It can be straight or curved, in many turns or curved forms.



Material: Stainless ASI316 wire of 2’5 mm section. Also can be painted or sheathed with some kind of small and thin pipe, just to increase its volume vision.



Dimensions: Connectors should not be larger than 350 mm (Lines modulation).

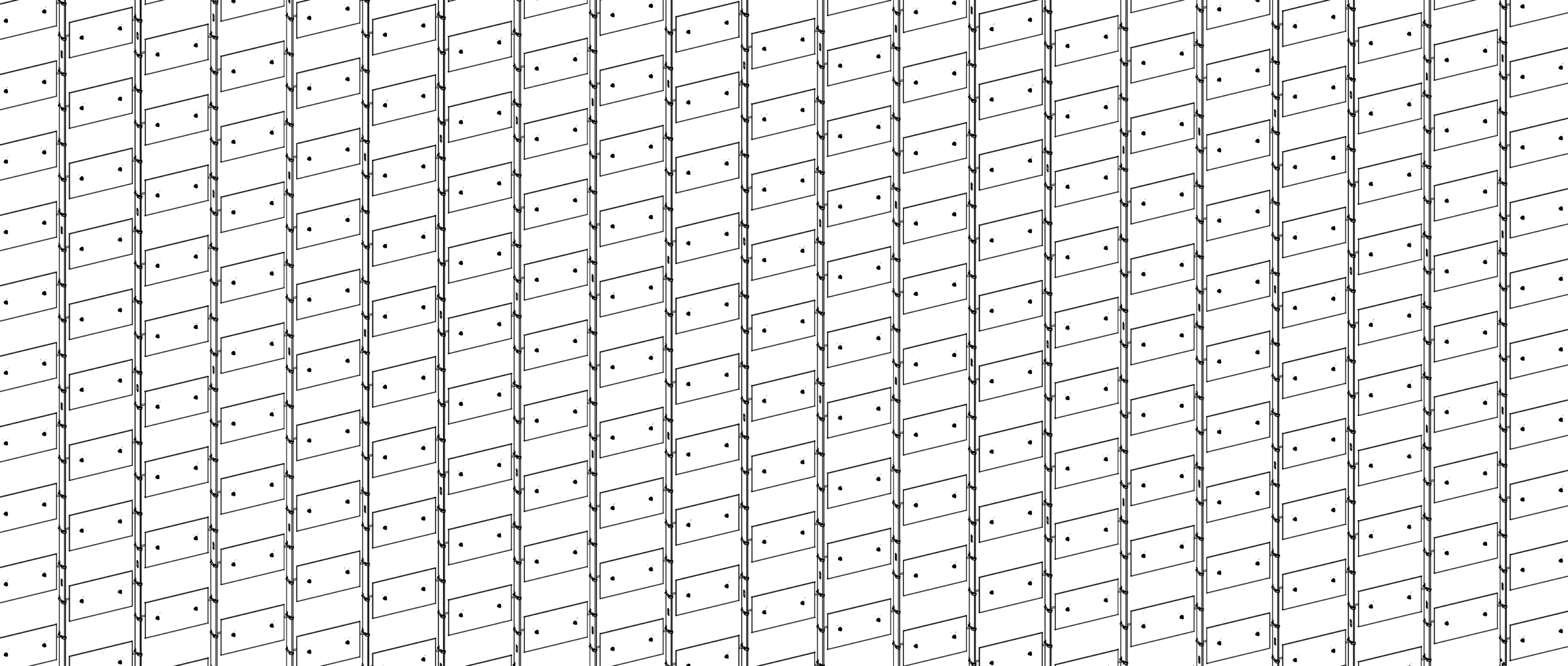

C) Denvelops® Surfaces

Because Denveops is an open System constructed with parametric technology, flat surfaces with single or double curve can be manufactured.

Plane surface:

Optimized

Single curvature surface:

Optimized. With curved connector or curved Lines.

Double curvature surface:

Optimized for small project areas.

D) Pattern Options

With Denvelops it’s possibile to design your project piece by piece as everything can be mounted in series or separately.

The choice and combination of  Lines, Connectors and Pieces, will depend on the desired finish of each project:



  • The position of the Connectors and Pieces with respect to the Lines is free and the direction, rotation and depth can be adjusted.
  • Different Lines, Connectors or Pieces can be freely mixed in the same project.
  • Designs can be made with regular or random width and depth of columns and lines.

E) Denvelops® Functions

Many functional surfaces can be created with Denvelops with just a little knowledge of how the pieces can be attached or how some pieces can be developed specifically for certain systems.



Any of our simple methods can be used in the same project according the needs of each facade orientation.



Avaiable functions:



  • Static Attach mode: Piece attached with no movement. Choose for every case its orientation, rotation or depth position against the facade surface.
  • Kinetic Attach mode: Piece attached with wind. Choose for every case its orientation, rotation or depth position against the facade surface.
  • Ventialated facade: Static attached pieces desinged with overlapped or open joins. Additional insulation is also avaible.
  • Sunscreen: Static attached pieces with free election of the tiles density and free election of the tiles position and orientation to get the best shade in relation to the sun’s heat.
  • Retail furniture: Explore the system to create furniture and product displays.

Coming soon

Since the Pieces, the Connectors and the Lines are components that can be cut with CNC machines, Denvelops system has become a great opportunity to add gadgets to the system. New functions are available right now:



Lighting / photovoltaics / active shadings / waterproofing / isolation



Denvelops is working to develop these functions and many others. It consists of adapting standard technologies -that already exist in the market- to the system.



Want to be the first? We are looking for a great project to launch our new system.
